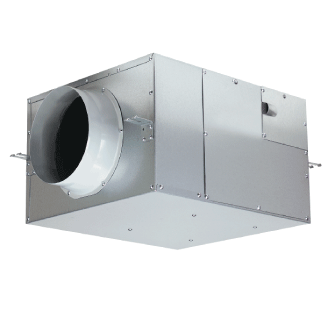

FV-12NS3H
FV-12NS3H
Cabinet Ventilating Fan (Highest Air Volume 180cmh)
Impeller Diameter: 128mm
Thermo cut-off motor
Twin flow fan design to generate large air volume and maintain high static pressure
Compact size
Color: Silver
Price: HK$1,440
Other Models
FV-10CG2H
► FV-12NS3H
FV-25GS4/T
Feature
Specifications
User Manual
Catalogue
Downloads:
Feature
Impeller Diameter: 128mm
Long life condenser motor with thermal cut-off
Twin flow fan design to generate large air volume and maintain high static pressure
Hi / Lo speed selectable
Compact size
Single-phase
Size(mm): 184(H) x 393(W) x 290(D)
Specifications
FV-12NS3H
FV-12NS3H
Voltage
220 Voltage (V)
Power Consumption
High
18 Wattage (W)
Low
17 Wattage (W)
Frequency
50 hertz (Hz)
Fan Speed
High
1265 R.P.M.
Low
1020 R.P.M.
Air Volume
High
180 Cubic meters per hour (m
3
/h)
Low
145 Cubic meters per hour (m
3
/h)
Noise Level
High
21 decibel (dB(A))
Low
17 decibel (dB(A))
Weight
5.5 Kilogram (kg)
