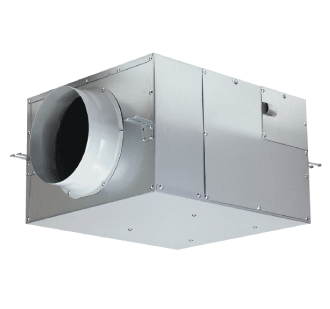

FV-15NS3H

Cabinet Ventilating Fan [Air Volume (Hi):340CMH]

  • Impeller Diameter: 128mm
  • Thermo cut-off motor
  • Twin flow fan design to generate large air volume and maintain high static pressure
  • Compact size
Color: Silver
Price: HK$1,880



Feature

  • Impeller Diameter: 128mm
  • Long life condenser motor with thermal cut-off
  • Twin flow fan design to generate large air volume and maintain high static pressure
  • Hi / Lo speed selectable
  • Compact size
  • Single-phase
  • Size(mm): 206(H) x 422(W) x 290(D)

Specifications

FV-15NS3H
FV-15NS3H
Voltage 220 Voltage (V)
Power Consumption High 33 Wattage (W)
Low 29.5 Wattage (W)
Frequency 50 hertz (Hz)
Fan Speed High 1270 R.P.M.
Low 1100 R.P.M.
Air Volume High 340 Cubic meters per hour (m3/h)
Low 275 Cubic meters per hour (m3/h)
Noise Level High 25 decibel (dB(A))
Low 22 decibel (dB(A))
Weight 6.5 Kilogram (kg)
* The product is subject to the actual product. Photos and product shots are for reference only. The actual color and size may vary slightly from those shown.
* Product specifications are subject to change without prior notice.
