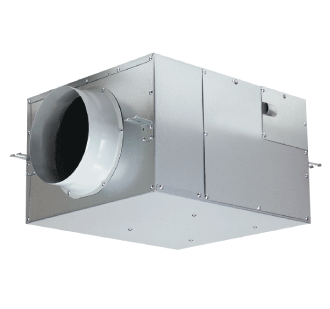

FV-25NF3H

Cabinet Ventilating Fan [Air Volume (Hi):1900CMH]

  • Impeller Diameter: 220mm
  • Thermo cut-off motor
  • Twin flow fan design to generate large air volume and maintain high static pressure
  • Compact size
Color: Silver
Price: HK$5,720



Feature

  • Impeller Diameter: 220mm
  • Long life condenser motor with thermal cut-off
  • Twin flow fan design to generate large air volume and maintain high static pressure
  • Hi / Lo speed selectable
  • Compact size
  • Single-phase
  • Size(mm): 334(H) x 675(W) x 494(D)

Specifications

FV-25NF3H
FV-25NF3H
Voltage 220 Voltage (V)
Power Consumption High 390 Wattage (W)
Low 325 Wattage (W)
Frequency 50 hertz (Hz)
Fan Speed High 1225 R.P.M.
Low 1070 R.P.M.
Air Volume High 1900 Cubic meters per hour (m3/h)
Low 1600 Cubic meters per hour (m3/h)
Noise Level High 43 decibel (dB(A))
Low 40 decibel (dB(A))
Weight 24 Kilogram (kg)
* The product is subject to the actual product. Photos and product shots are for reference only. The actual color and size may vary slightly from those shown.
* Product specifications are subject to change without prior notice.
