30BGCH

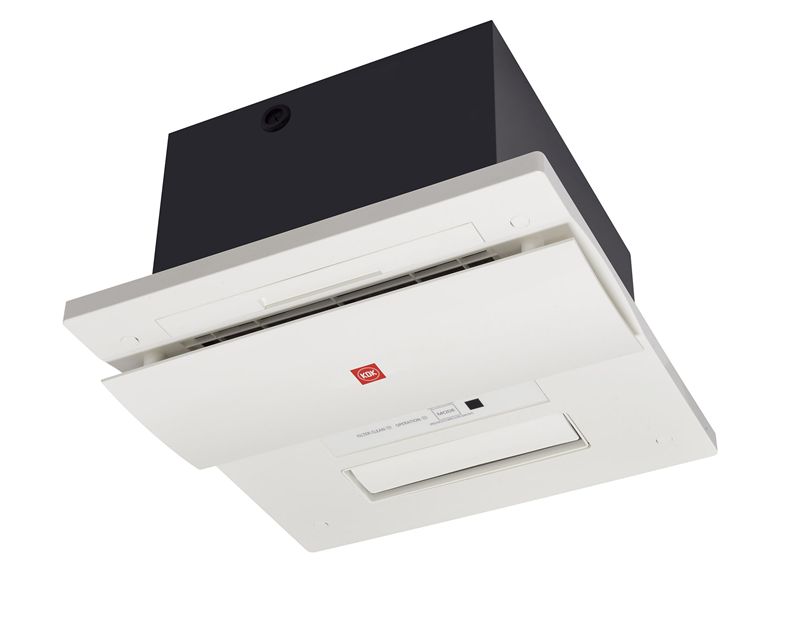

Ceiling Mount – Thermo Ventilator (Slim Type)

Buy now

Ceiling Mount Installation
Easy Installation Design with 180 mm body height
Heating / Clothes Drying / Ventilation / Circulation Feature

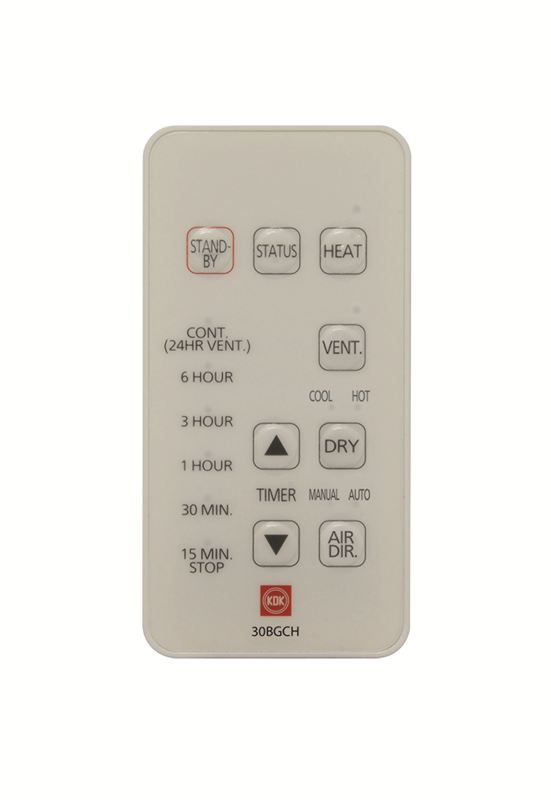

Remote Control for Easy Operation and Installation

Color: Pearl White

Price: HK$3,080

Feature
Specifications
FAQ
Recipe

User Manual
Catalogue
Downloads:

Feature

Ceiling Mount Installation
Easy Installation Design with 180 mm body height
Heating / Clothes Drying / Ventilation / Circulation Feature
Remote Control for Easy Operation and Installation
Pre-set Timer Control Feature
Auto / Manual Swing Operation
Antibacterial Filter
Size(mm) : 360 (L) x 360 (W) x 219 (D)

Specifications

		30BGCH

		30BGCH
Net Weight		5 Kg
Power Source		13 A
Wattage	Ventilation	28 W
Wattage	Max. Wattage	1,650 W
Air Volume	Ventilation	170 CMH
Noise Level	Ventilation	39 dB
Noise Level	Heating	46 dB
Heater		PTC
Control Type		Wireless Remote
Heating		Yes
Dry		Hot‧Cool
Ventilation		Yes
Timer		15/30/60/180/360 (Minute)
Filter		Antibacterial Filter
No. of Motor / Blade		1 / 1
No. of Exhaust Outlet		1
Duct Diameter		Ø 100 (mm) Ø 4 (inch)
Installation Hole Size		300 x 300 (mm) 11.81 x 11.81 (inch)

FAQ

🙋 Installation hole size and louver size

Model	Type	Installation hole size Height x Width (mm)	Louver size Height x Width (mm)
23BWAH	Window Mount	242 x 238	280 x 280
23BWBH	Window Mount	242 x 238	280 x 280
23BWDBH	Window Mount	242 x 238	280 x 280
30BWBH	Window Mount	300 x 275	350 x 320
30BGCH	Ceiling Mount	300 x 300	360 x 360
40BECH	Ceiling Mount	280 x 400	350 x 472
40BLAH	Ceiling Mount	280 x 400	350 x 472

* The product is subject to the actual product. Photos and product shots are for reference only. The actual color and size may vary slightly from those shown.

* Product specifications are subject to change without prior notice.
