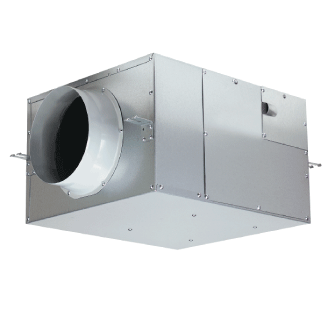

FV-18NS3H

Cabinet Ventilating Fan [Air Volume (Hi)：500CMH]

Impeller Diameter: 158mm
Thermo cut-off motor
Twin flow fan design to generate large air volume and maintain high static pressure
Compact size

Color: Silver

Price: HK$2,230

Feature
Specifications

User Manual
Catalogue
Downloads:

Feature

Impeller Diameter: 158mm
Long life condenser motor with thermal cut-off
Twin flow fan design to generate large air volume and maintain high static pressure
Hi / Lo speed selectable
Compact size
Single-phase
Size(mm): 232(H) x 458(W) x 316(D)

Specifications

		FV-18NS3H

		FV-18NS3H
Voltage		220 Voltage (V)
Power Consumption	High	60 Wattage (W)
Power Consumption	Low	55 Wattage (W)
Frequency		50 hertz (Hz)
Fan Speed	High	1250 R.P.M.
Fan Speed	Low	1100 R.P.M.
Air Volume	High	500 Cubic meters per hour (m³/h)
Air Volume	Low	405 Cubic meters per hour (m³/h)
Noise Level	High	29 decibel (dB(A))
Noise Level	Low	27 decibel (dB(A))
Weight		8.5 Kilogram (kg)

* The product is subject to the actual product. Photos and product shots are for reference only. The actual color and size may vary slightly from those shown.

* Product specifications are subject to change without prior notice.
