FV-19CG2H

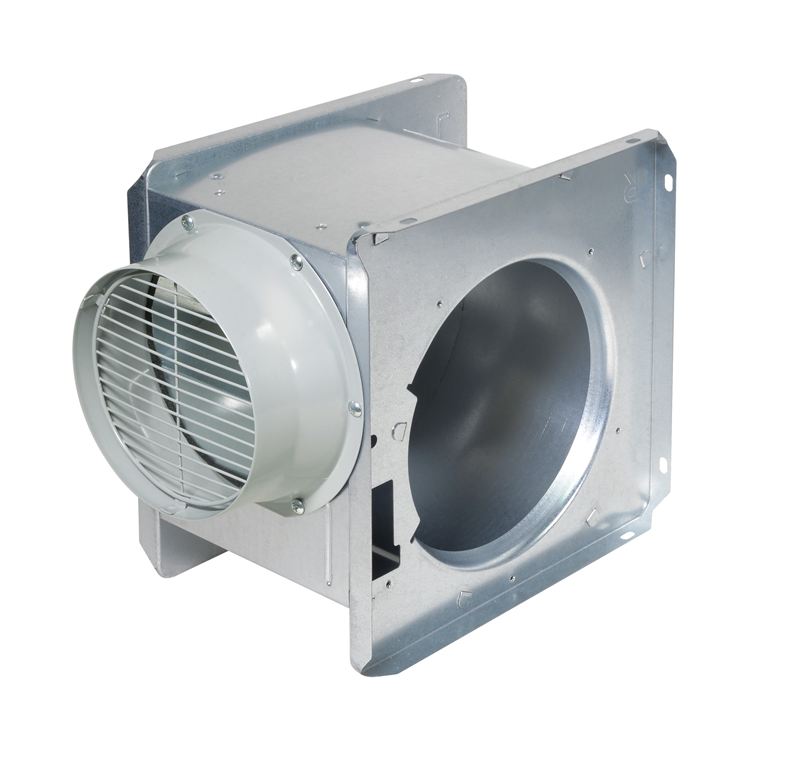

Mini Sirocco Ventilating Fan [Air Volume (Hi):950CMH]

  • Impeller Diameter: 180mm
  • Thermo cut-off motor
  • Ambient temperature range from -10℃ to +40℃
  • Outlet direction is adjustable to horizontal or vertical position
Color: Silver
Price: HK$2,630



Feature

  • Impeller Diameter: 180mm
  • Long life induction motor with thermal cut-off
  • Hi / Lo speed selectable
  • Outlet direction is adjustable to horizontal or vertical position
  • Able to be used over an ambient temperature range from -10℃ to +40℃
  • Size(mm): 330(H) x 400(W) x 332(D)

Specifications

FV-19CG2H
FV-19CG2H
Voltage 220 Voltage (V)
Power Consumption High 120 Wattage (W)
Low 105 Wattage (W)
Frequency 50 hertz (Hz)
Fan Speed High 935 R.P.M.
Low 850 R.P.M.
Air Volume High 950 Cubic meters per hour (m3/h)
Low 830 Cubic meters per hour (m3/h)
Noise Level High 42 decibel (dB(A))
Low 39 decibel (dB(A))
Duct Diameter Ø 200 (mm)
Ø 8 (inch)
Weight 10.4 Kilogram (kg)
* The product is subject to the actual product. Photos and product shots are for reference only. The actual color and size may vary slightly from those shown.
* Product specifications are subject to change without prior notice.
