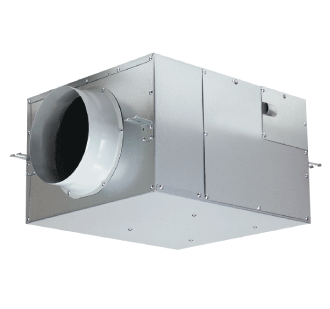

FV-25NF3H

Cabinet Ventilating Fan [Air Volume (Hi)：1900CMH]

Impeller Diameter: 220mm
Thermo cut-off motor
Twin flow fan design to generate large air volume and maintain high static pressure
Compact size

Color: Silver

Price: HK$5,720

Feature
Specifications

User Manual
Catalogue
Downloads:

Feature

Impeller Diameter: 220mm
Long life condenser motor with thermal cut-off
Twin flow fan design to generate large air volume and maintain high static pressure
Hi / Lo speed selectable
Compact size
Single-phase
Size(mm): 334(H) x 675(W) x 494(D)

Specifications

		FV-25NF3H

		FV-25NF3H
Voltage		220 Voltage (V)
Power Consumption	High	390 Wattage (W)
Power Consumption	Low	325 Wattage (W)
Frequency		50 hertz (Hz)
Fan Speed	High	1225 R.P.M.
Fan Speed	Low	1070 R.P.M.
Air Volume	High	1900 Cubic meters per hour (m³/h)
Air Volume	Low	1600 Cubic meters per hour (m³/h)
Noise Level	High	43 decibel (dB(A))
Noise Level	Low	40 decibel (dB(A))
Weight		24 Kilogram (kg)

* The product is subject to the actual product. Photos and product shots are for reference only. The actual color and size may vary slightly from those shown.

* Product specifications are subject to change without prior notice.
